Belt Driven Fans

At our company, we specialize in providing comprehensive belt driven fan services and solutions for businesses across various industries.

ABOUT BELT DRIVEN FANS

Belt Driven Fans for Optimal Air Movement

As a leading engineering solution company, we offer a wide range of high quality belt driven fans that are designed to meet the unique needs of various industrial and commercial applications.

Drop hammer industrial fan

Drop Hammer

Butterfly cone exhaust fan

Butterfly Cone

Centrifugal Push-Pull Fan

Centrifugal Push-Pull

EXHAUST FAN BOX SHAPE

Drop Hammer Type

With our belt driven fans, we choose the best components and materials to construct our belt driven fans, ensuring their durability and longevity.

  • Automatic open-close shutter system
  • Propeller is statically & dynamically balanced
  • Hub & Pulley are made from die-cast aluminum
  • It is the ideal exhaust fan whenever extra high airflow capacity is required
  • Fan Propeller material is SS
  • Each motor is individually tested
  • Fan Housing made of strong GI Sheet

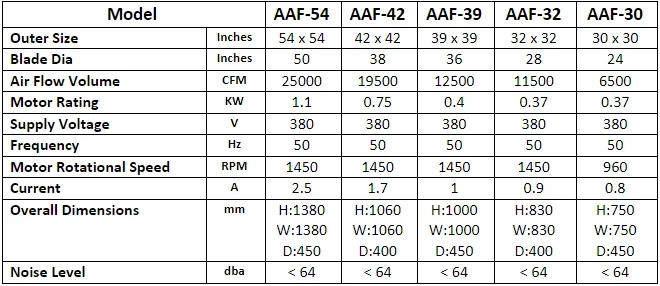

Specifications & Dimensions

Specifications & Dimensions Table

EXHAUST FAN BOX SHAPE

Butterfly Cone Type

Our team of experienced engineers carefully selects the best components and materials to construct our belt driven fans, ensuring their durability and longevity.

  • Current / A: 2.8
  • Frequency / Hz: 50
  • Input Power / KW: 1.1
  • AAF-BFC-54 (54” x 54”)
  • Blade Diameter / Inch: 50
  • Rotational Speed (r/min): 1440
  • Driven: Belt
  • Voltage / V: 380
  • Air Flow (CFM) 30000
  • Noise (DBA): less than 64
  • Size/mm: 1380*1380*1300

EXHAUST FAN BOX SHAPE

Centrifugal Push-Pull Type

With our belt driven fans, you can expect superior airflow and performance, providing effective ventilation and cooling solutions for your facility.

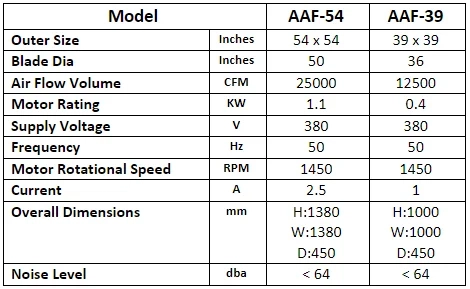

Specifications & Dimensions

×
